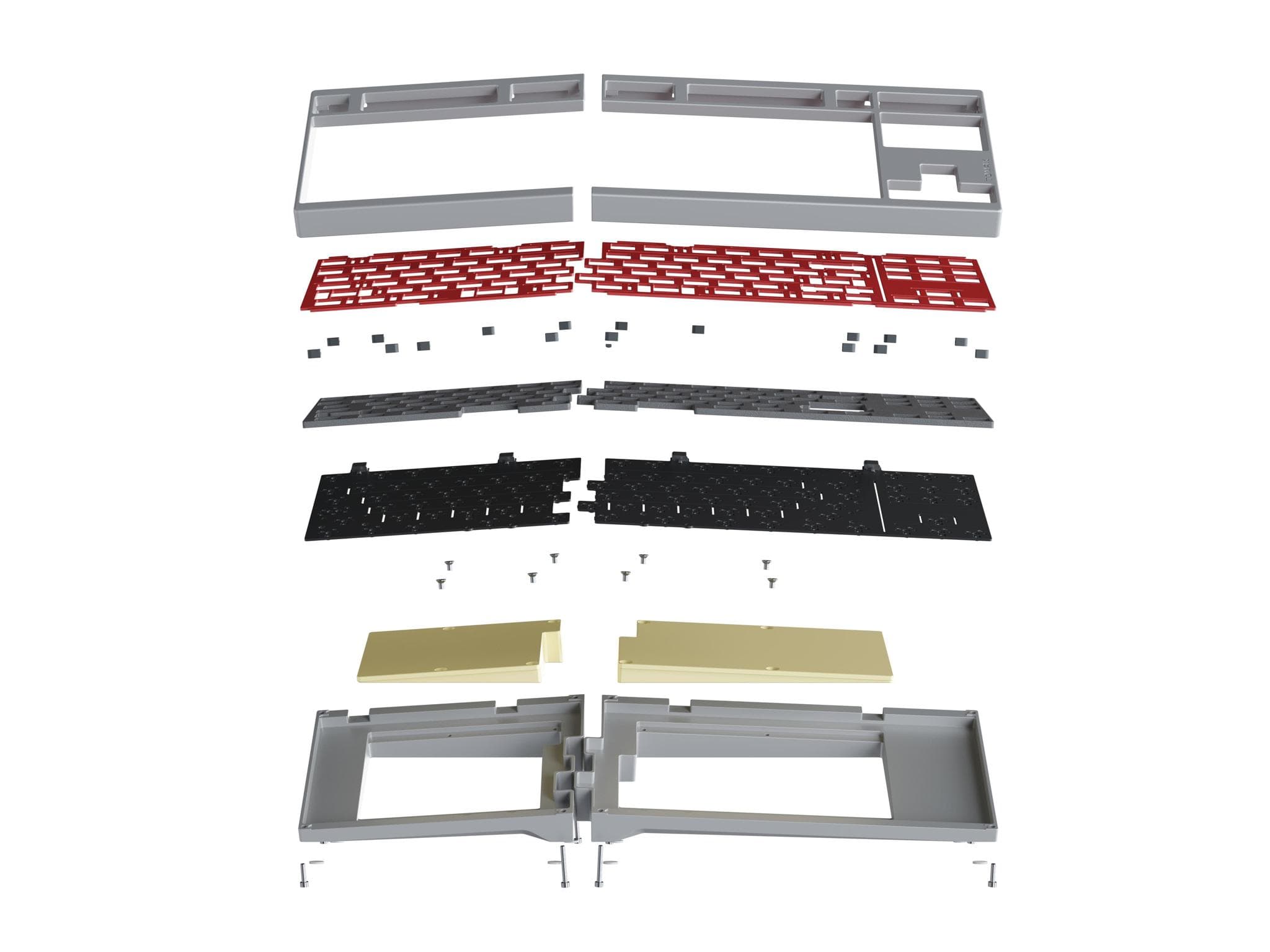

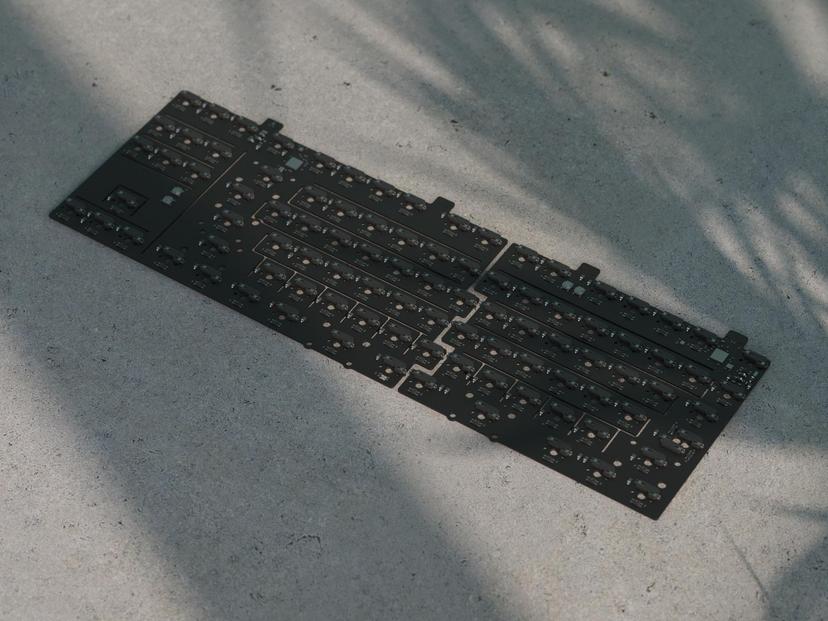

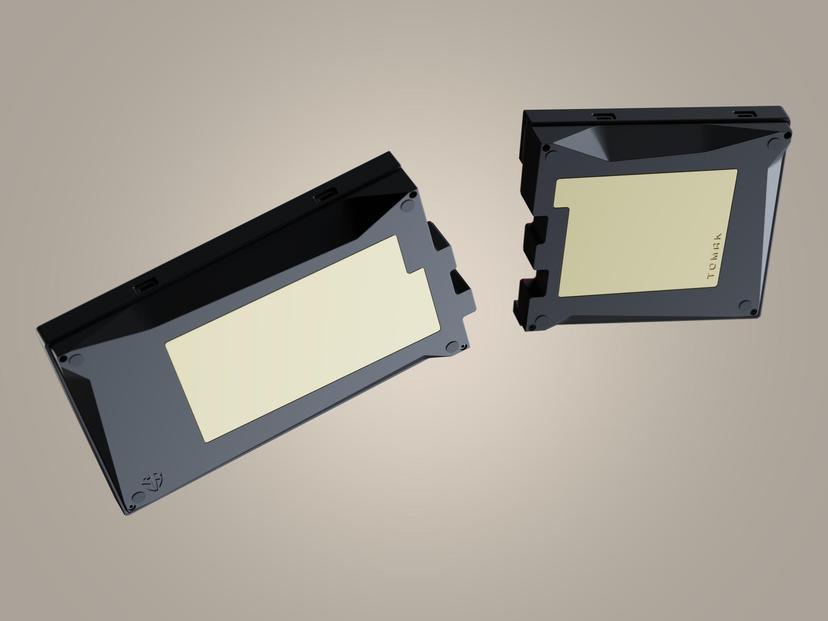

The TOMAK is a tented split TKL keyboard designed for comfort and ergonomics. It features a gasket mount, aluminum case with brass weight, and hotswap PCBs with per-key RGB.
Project Gallery
Community Feedback & Sentiment
Feedback Highlights
Positive (3)
"Community members are excited about the unique layout and ergonomic design."
"Several users appreciate the addition of extra key columns for customizable typing."
"Overall sentiment is positive about the potential of the project and its design."
Negative (3)
"Concerns about keycap compatibility due to the unique layout."
"Criticism regarding the asymmetry in key sizes on both sides of the keyboard."
"Some users feel the additional keys complicate the layout unnecessarily."
Suggestions (3)
Consider poll options for key layout preferences among the community.
Open source the PCB design for accommodating different layouts.
Enhance compatibility with existing keycap sets to appeal to a wider audience.
Questions (3)
Why is there a difference in key sizes between the left and right sides?
Will there be options for a version without the extra column?
What will the final pricing model look like?
Duckeebs Analysis
The thread contains active engagement, with 19 total comments and varying sentiments regarding the layout design changes. Suggestions and discussions are prevalent, reflecting significant interest in the project.
Project Specs
- Name
- TOMAK - Tented Split TKL
- Switch Options
- -
- Profile
- -
- Layout Size
- TKL
- Layout Standard
- -
- Layout Ergonomics
- Tented, Split
- Connection
- USB-C
- Polling Rate
- -
- Battery capacity
- -
- Mount Style
- Gasket mounted
- Case Colors
- Black, E-White, Silver
- Case Material
- 6063 Aluminium
- Keycaps Material
- -
- Dimensions
- -
- Weight
- 3.5kg
- Hot Swappable
- Yes
- Knob Support
- -
- Display Support
- -
- Mac/Win Support
- -
- Multi-Media Keys
- -
- USB-C
- Yes
- USB passthrough
- -
- Hall Effect Support
- -
- QMK Support
- Yes
- VIA Support
- Yes
- N-Key Rollover
- -
- Rapid Trigger
- -
- Screw-in Stabilizers
- -
- Sound Dampening
- -
- Backlight
- PerKey RGB
