System_65 Keyboard IC: A Premium 65% Design

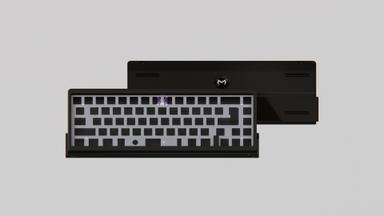

The System_65 by Mozaic.Dev is a thoughtfully designed 65% mechanical keyboard that combines functionality, aesthetics, and customizability. With a minimalist yet striking appearance, magnetic accents, and support for multiple layouts, it offers a luxurious typing experience for enthusiasts.

Key Features of the System_65

Design and Aesthetics: Features a front-facing weight and bottom badge, both attached magnetically for a sleek, modern look.
Mounting Style: Top mount construction with 5-point attachment (optional point included) for a consistent typing feel.

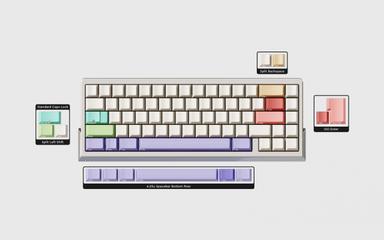

Layout Compatibility: Supports ANSI, ISO, split backspace, split left shift, and 6.25u/7u spacebar layouts.

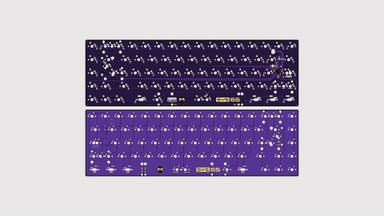

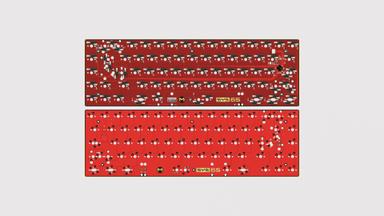

PCB Options: Hotswap and solderable PCBs compatible with QMK and VIA.
Material Choices: Accent weight and badge in PVD-coated finishes (e.g., Blue, Black), with top and bottom cases crafted from high-quality aluminum.

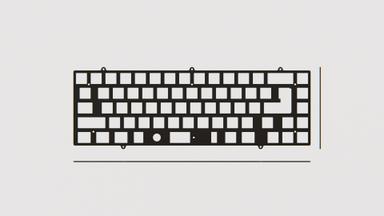

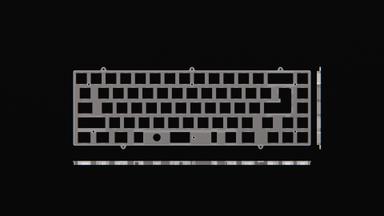

Plate Options: Aluminum, PC (1.5mm and 5mm), and FR-4 for tailored typing experiences.
Ergonomics: 7° typing angle with a low 19.4mm front height for comfort.

Specifications

Layout: 65% with flexible configuration options.
Typing Angle: 7 degrees
Front Height: 19.4mm (adjusted)
Weight (Unbuilt): ~1.22kg
Pricing: Estimated $425 USD (pre-order) or lower if possible.

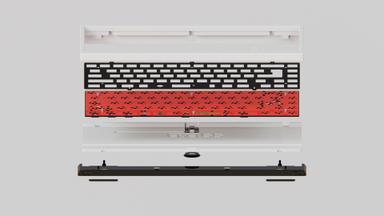

What’s Included

Top and bottom cases
Plate (choice of material)
Accent weight (magnetically attached)
Badge (magnetically attached)
PCB (hotswap or solder) with daughterboard and JST cable
Feet, screws, and magnets (pre-installed)
Custom packaging

Available Variants (Initial Sale)

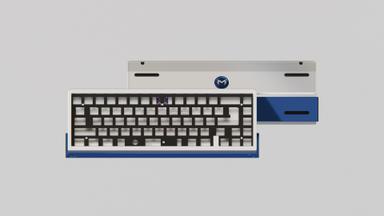

Azure Odyssey: Silver top/bottom, Blue PVD accents

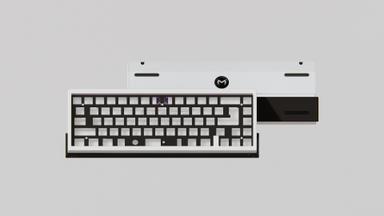

Imperial White: White (E-coat) top/bottom, Black PVD accents
Triple Black: Black top/bottom, Black PVD accents

Upcoming Details

Group Buy Date: TBD (2024)
Vendor: Mozaic.Dev (regional vendors to be announced)
Additional Add-ons: To be determined (feedback welcome).

For updates, follow on Instagram or join the mailing list on the Mozaic.Dev website. Share your thoughts via the feedback form.
