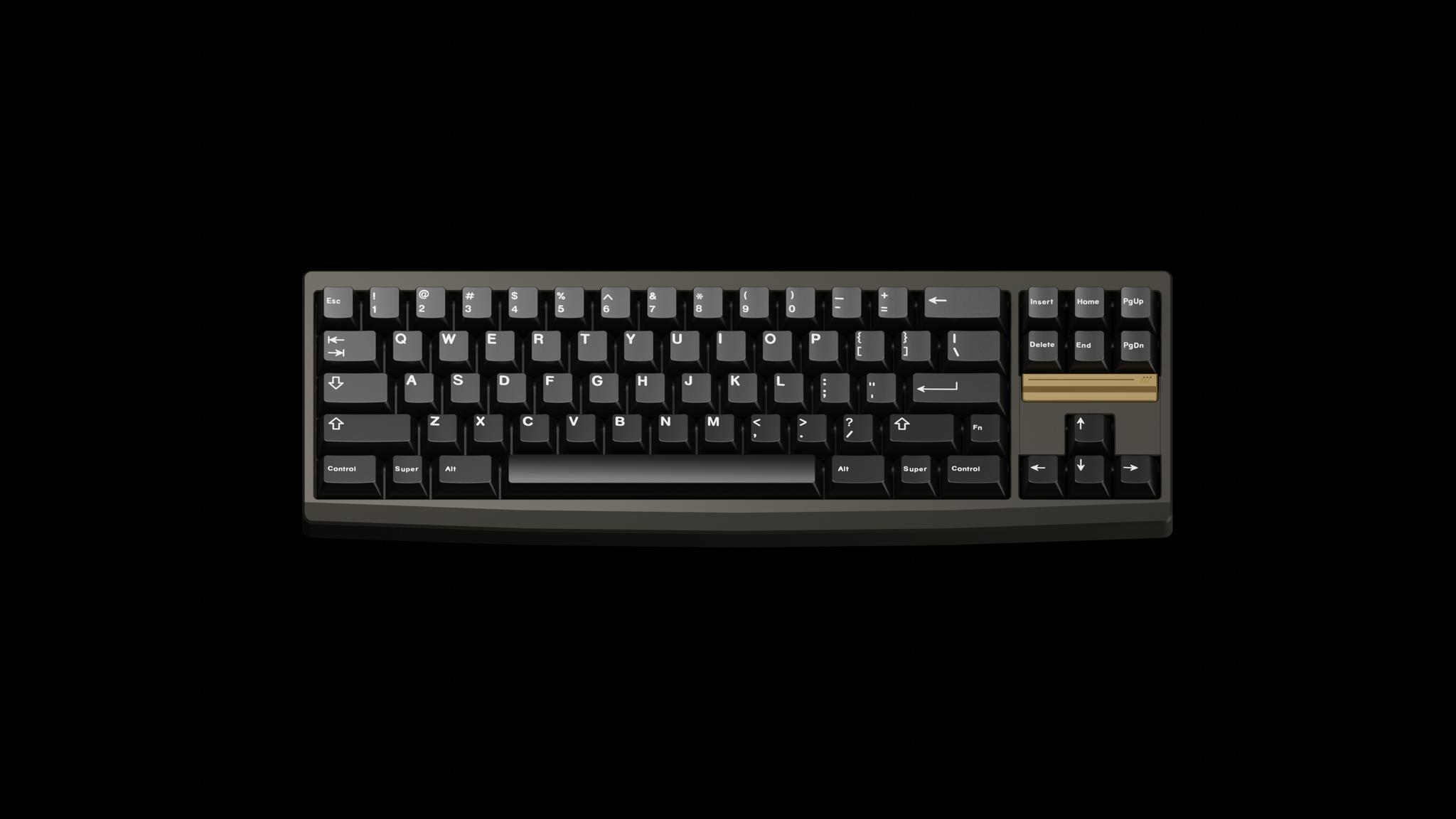

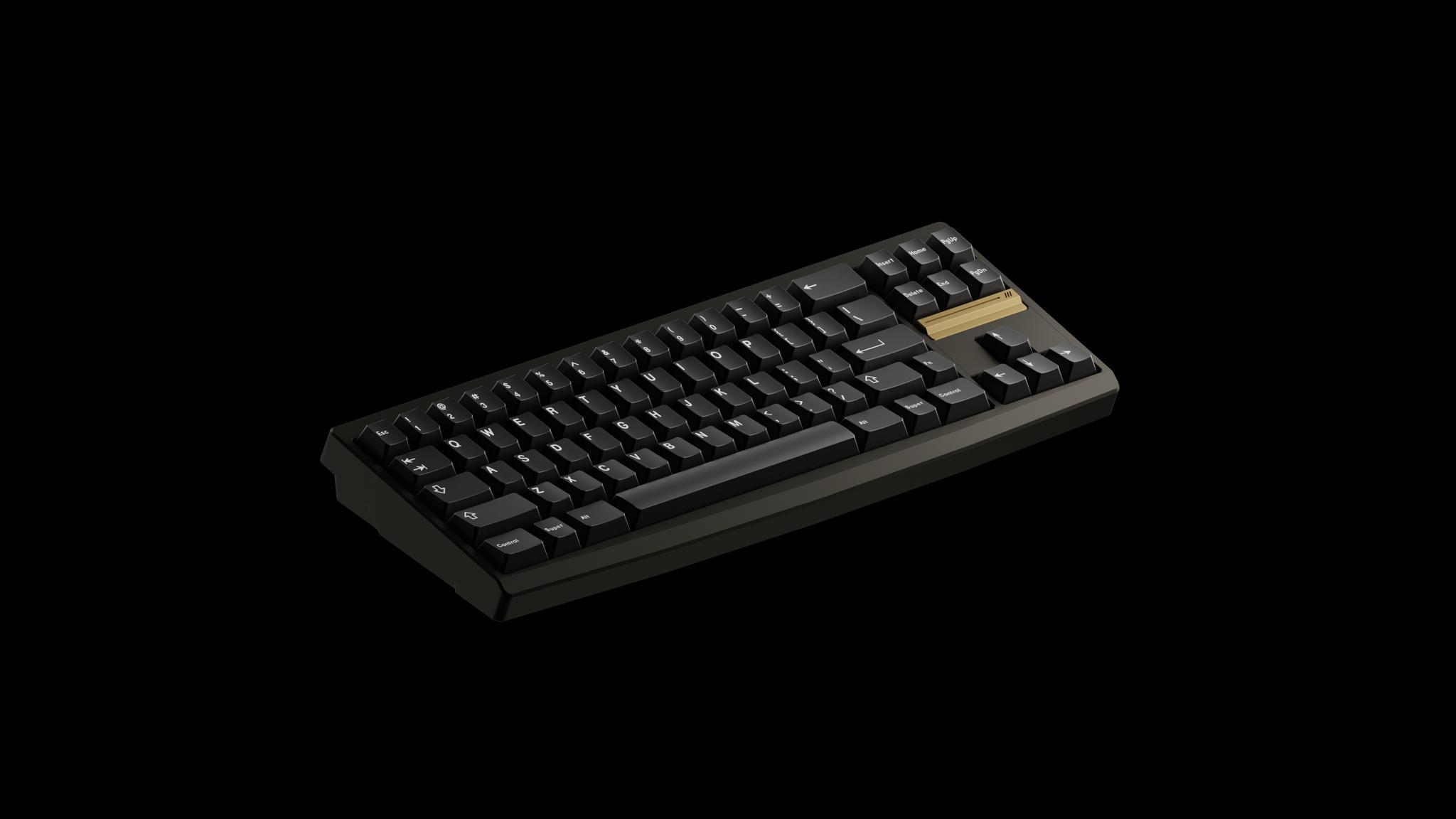

Øbliviate: Monoblock FRL TKL O-Ring Mounted Keyboard

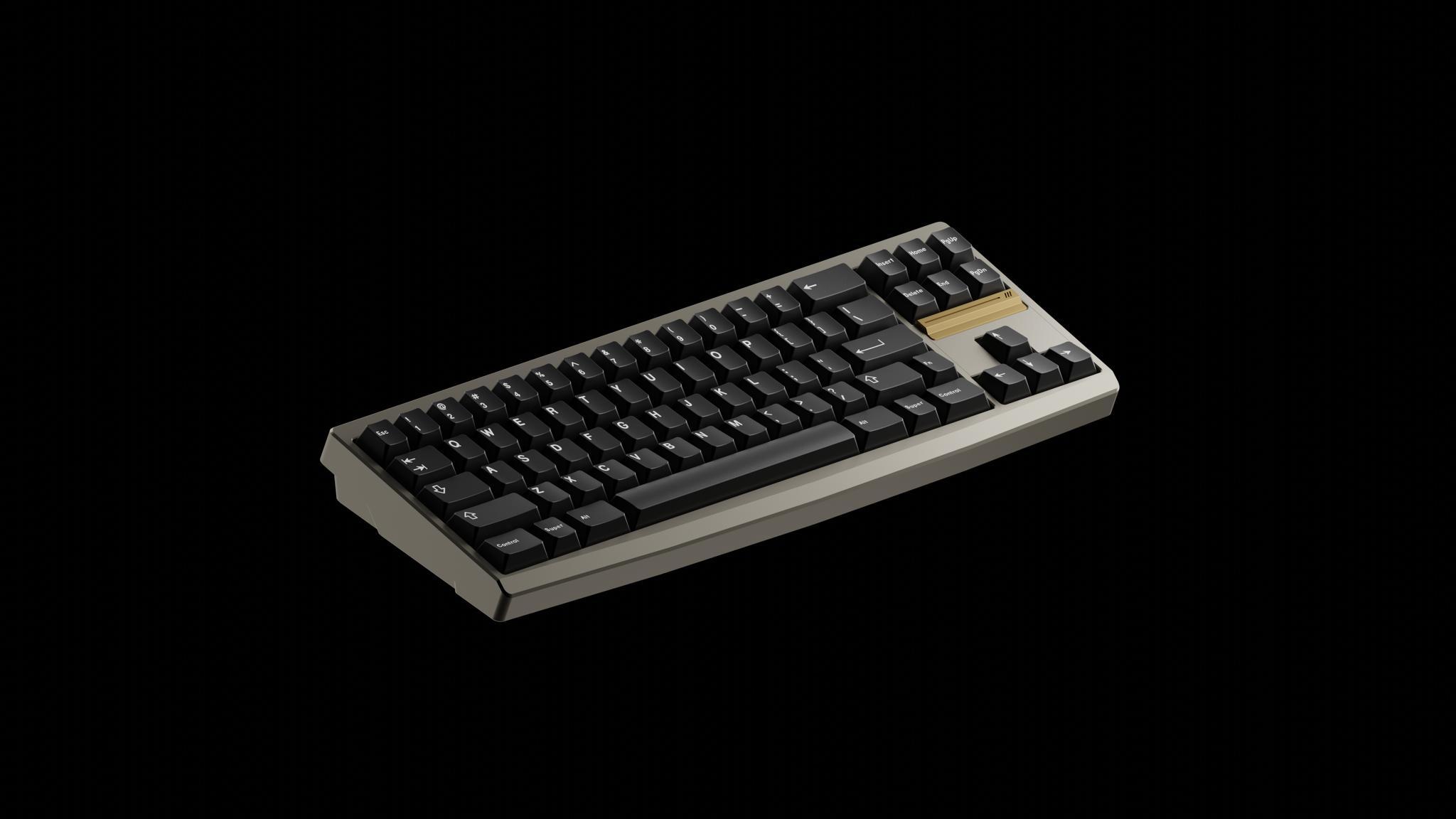

Introducing the Øbliviate, a meticulously crafted Front Row Layout (FRL) Tenkeyless (TKL) mechanical keyboard that combines innovative design with superior typing comfort. Developed by Anorexus, the Øbliviate aims to deliver a unique and satisfying typing experience through its distinctive features.

Key Features:

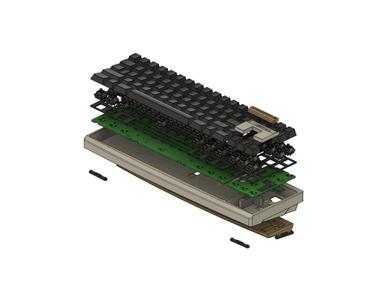

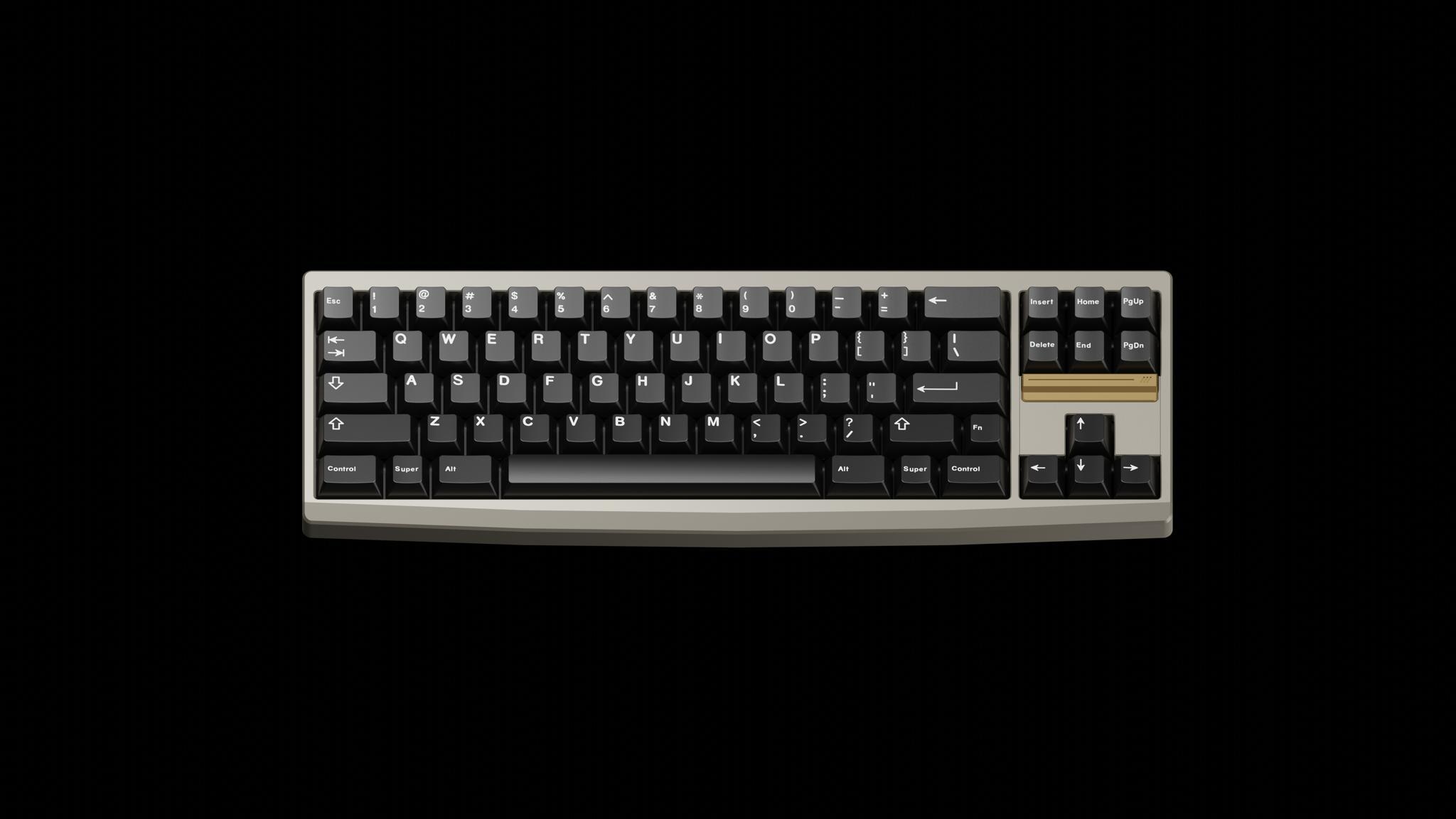

Monoblock Design: The Øbliviate boasts a single-piece case that separates the alphanumeric and navigation clusters, enhancing both aesthetics and functionality.

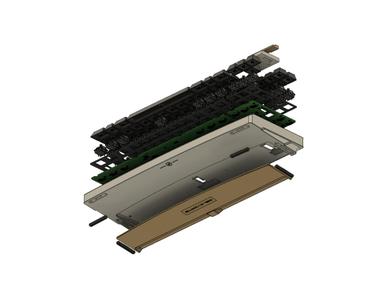

O-Ring Mounting System: Utilizing an O-ring mount, this keyboard offers a cushioned typing feel, reducing strain during prolonged use.

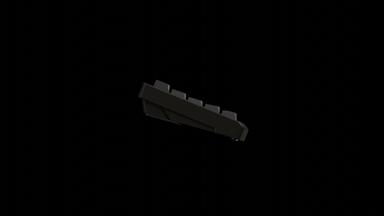

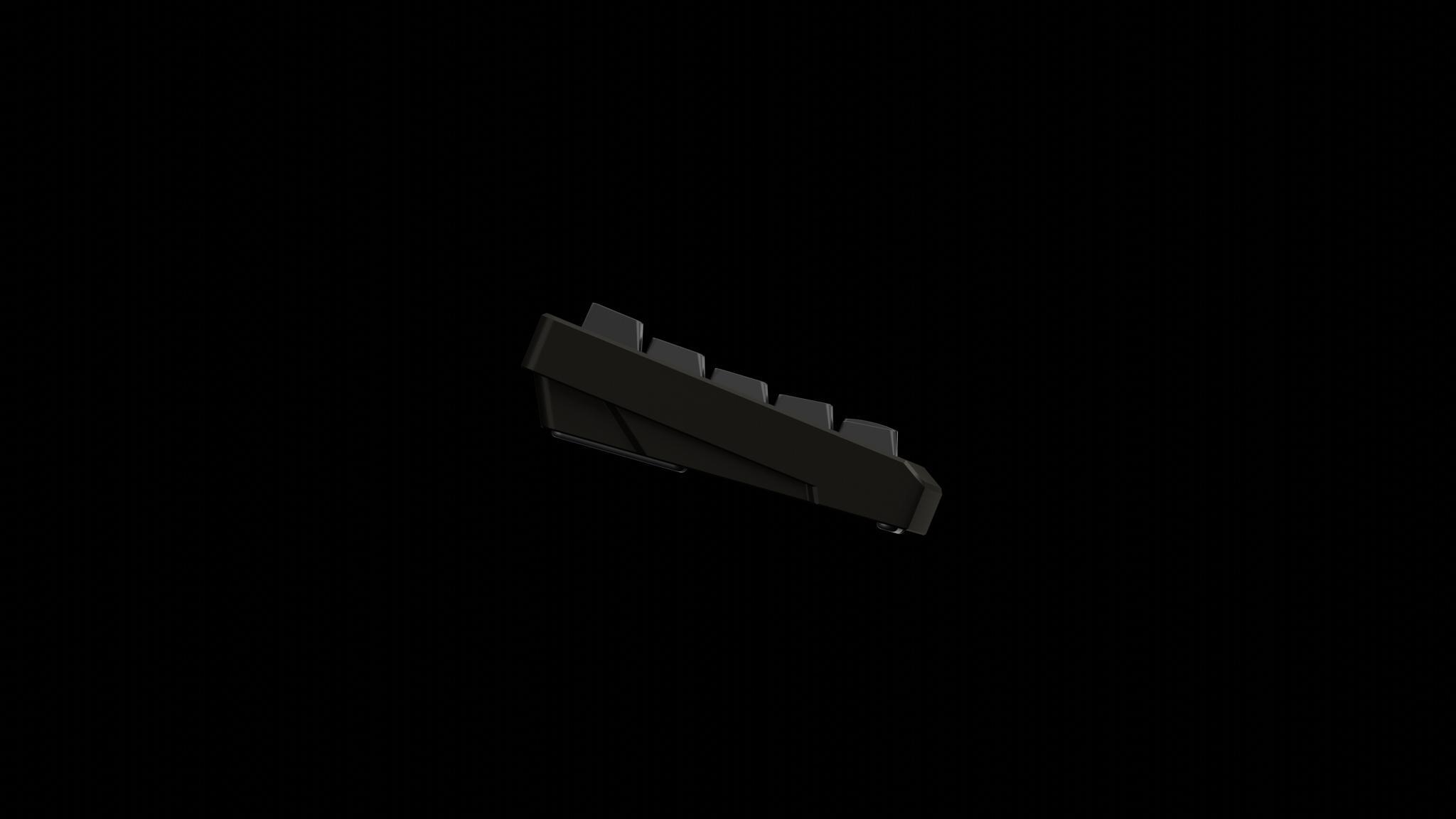

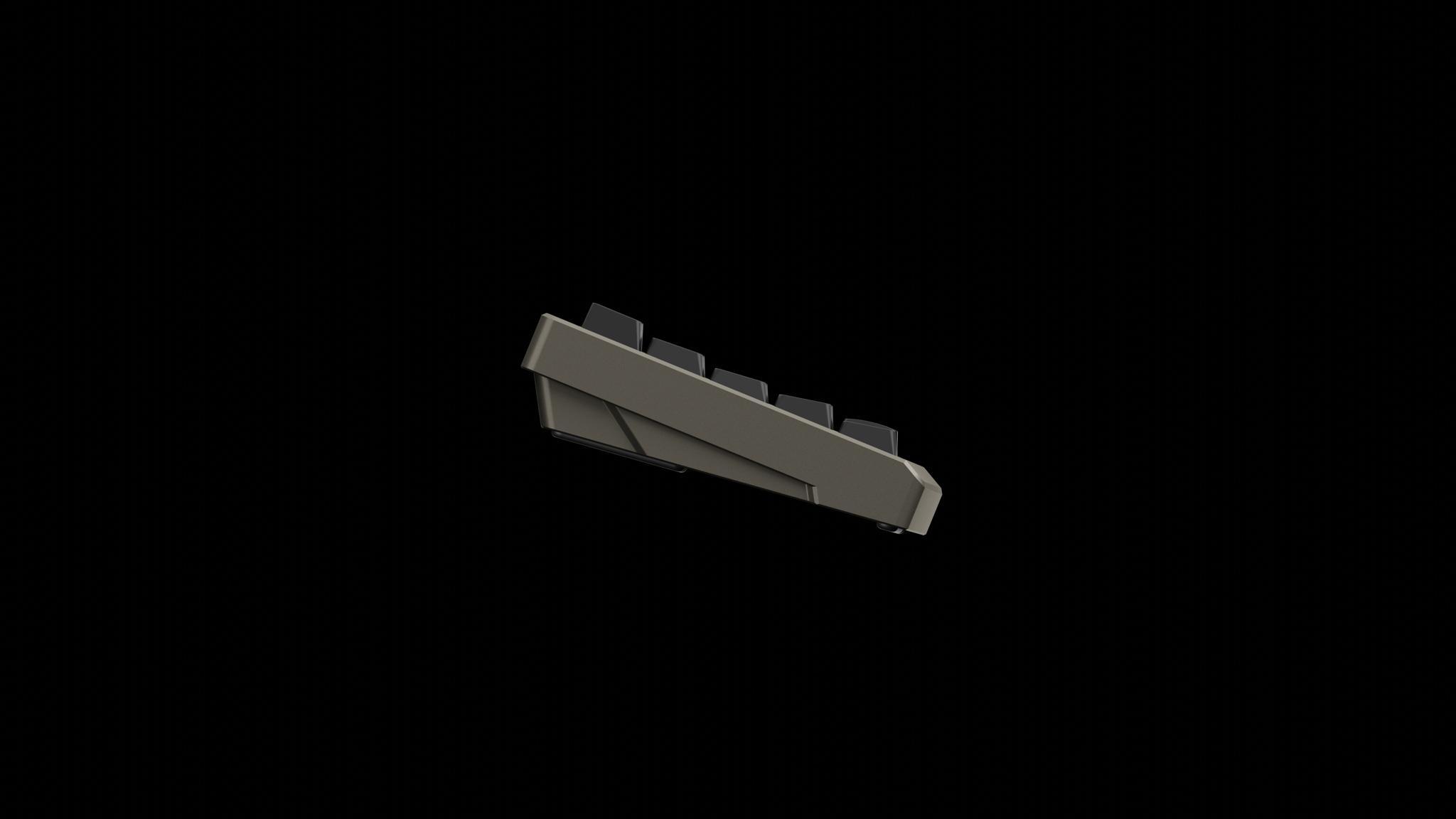

Typing Angle: Ergonomically designed with a 6.5° typing angle to promote natural wrist positioning.

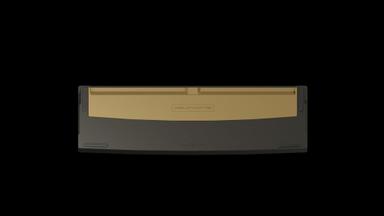

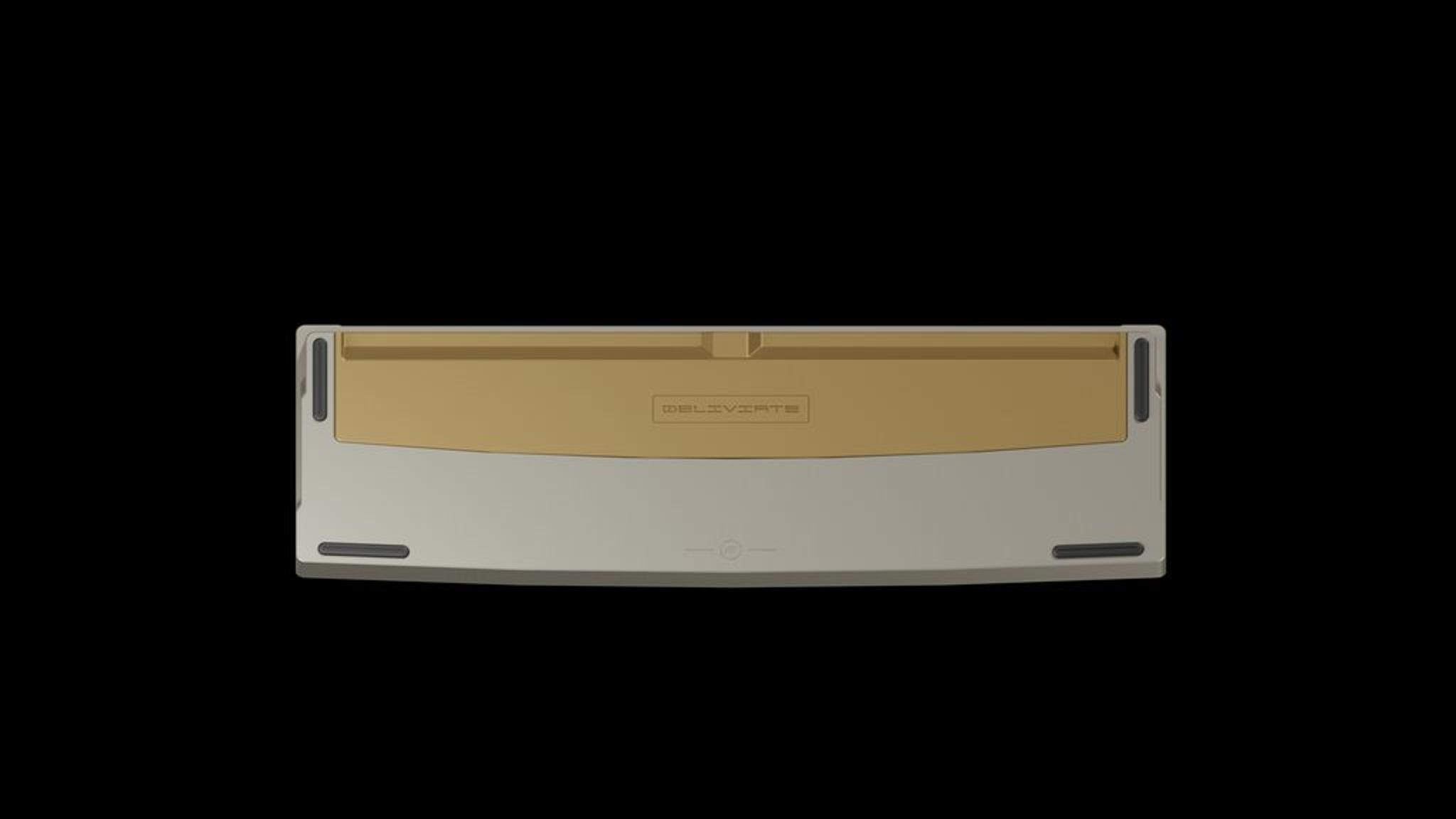

Material Quality: Constructed from premium materials, including Aluminum 6063 for the case, with brass accents and weight for added stability and a touch of elegance.
Customizable Layout: Supports both hotswap and solder PCBs, configurable via QMK/VIA firmware, with ISO support and split backspace options available for soldered versions.
Plate Options: Offers a variety of plate materials such as Aluminum, Polycarbonate, POM, Carbon Fiber, and FR4, allowing users to tailor the typing experience to their preferences.

Specifications:

Dimensions: Length: 358.66mm; Width: 120.64mm
Effective Keyboard Height: 22.65mm
PCB Thickness: 1.6mm
Firmware Compatibility: QMK/VIA supported

Current Status:

The Øbliviate is currently in the prototype testing phase, with the first prototype being evaluated to refine design and functionality. Feedback from the community is highly valued to determine pricing and potential vendor partnerships.

Stay Updated:

For the latest updates and to participate in discussions, join the Anorexus Discord server and follow their Instagram page:

Experience the fusion of innovative design and ergonomic comfort with the Øbliviate keyboard, where form meets function in perfect harmony.
