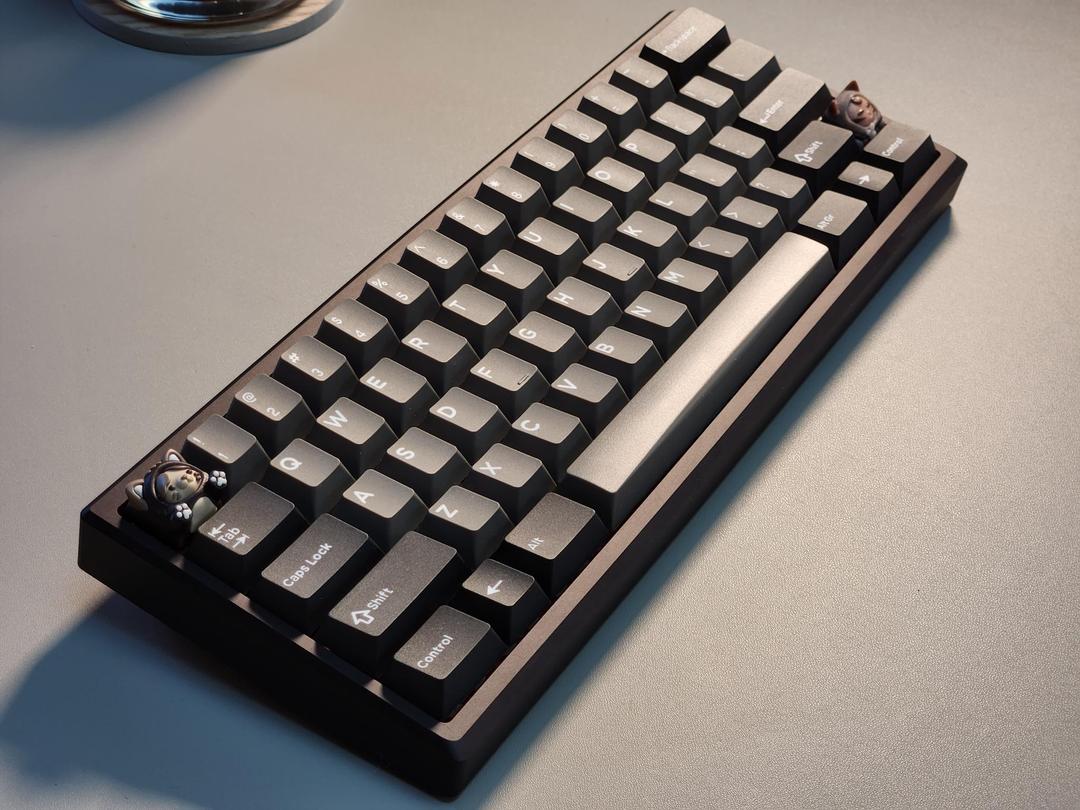

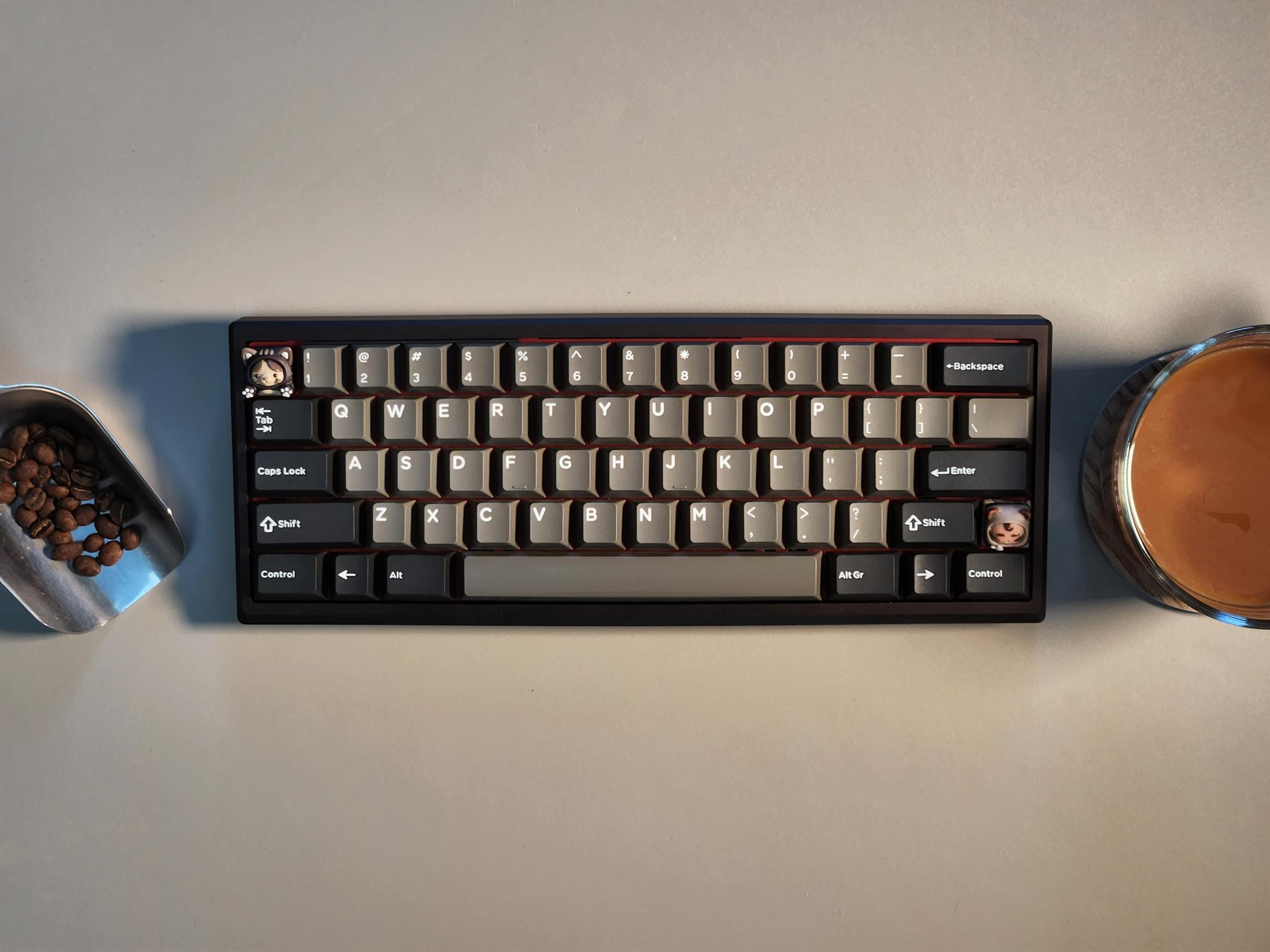

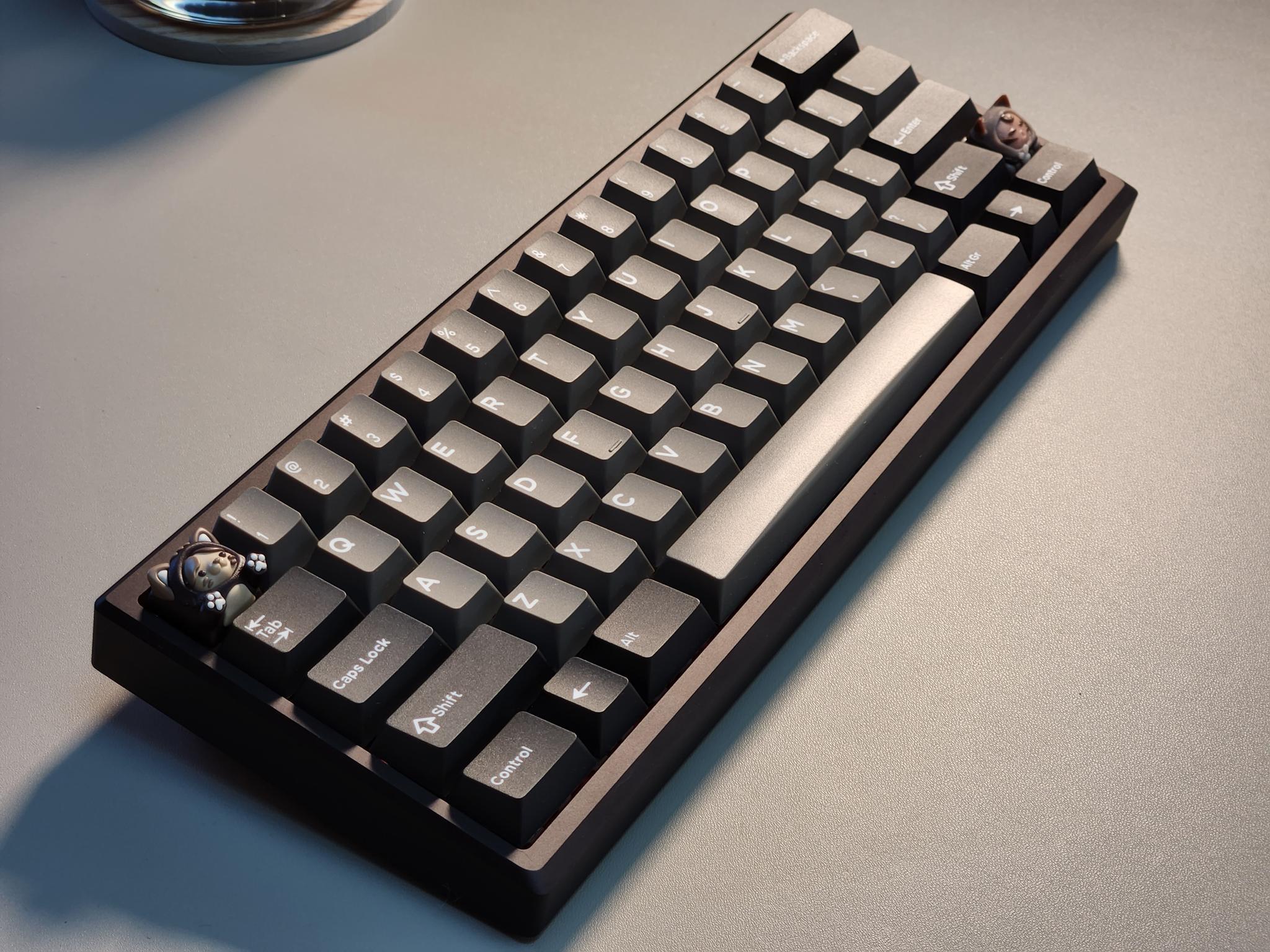

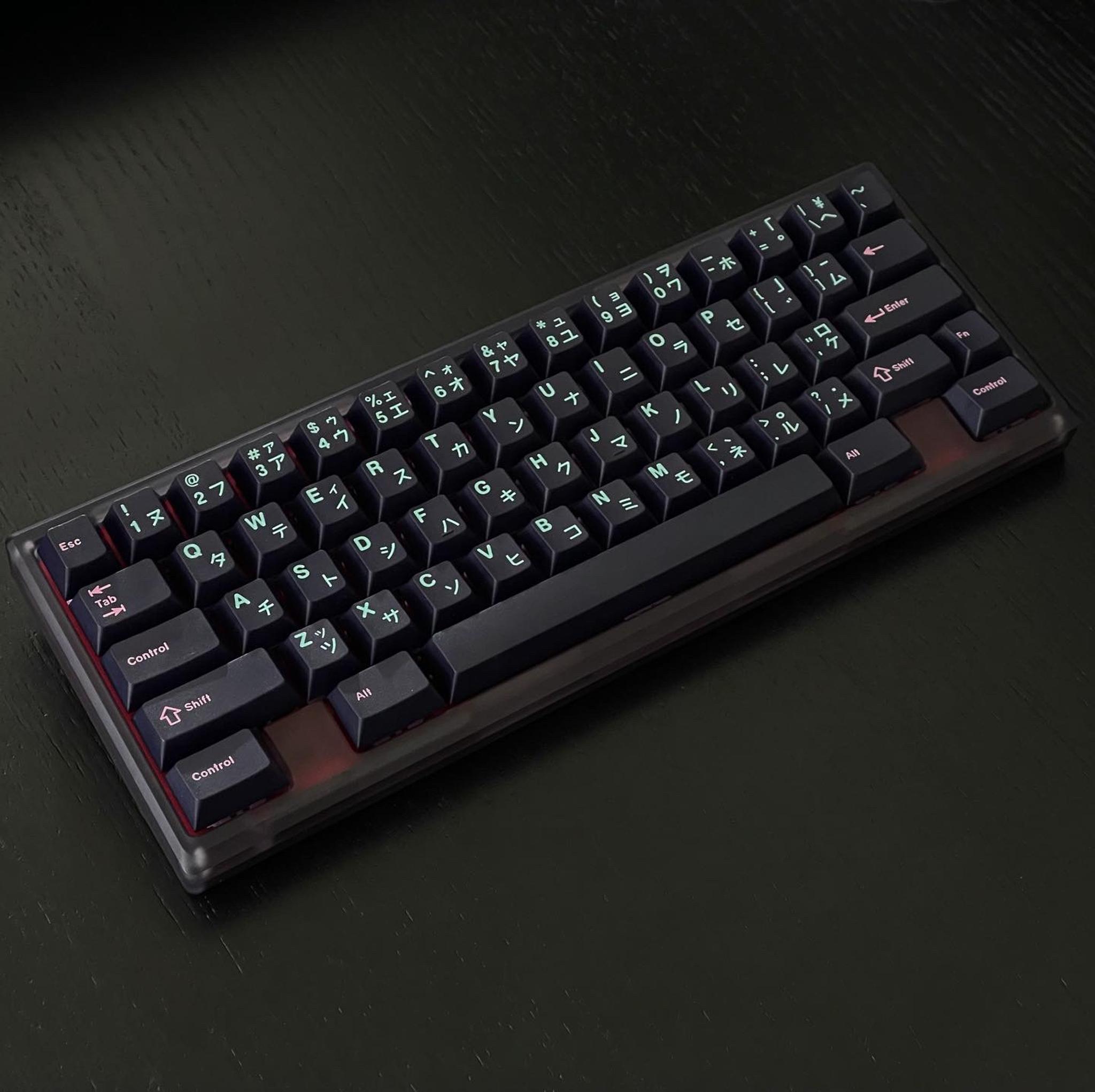

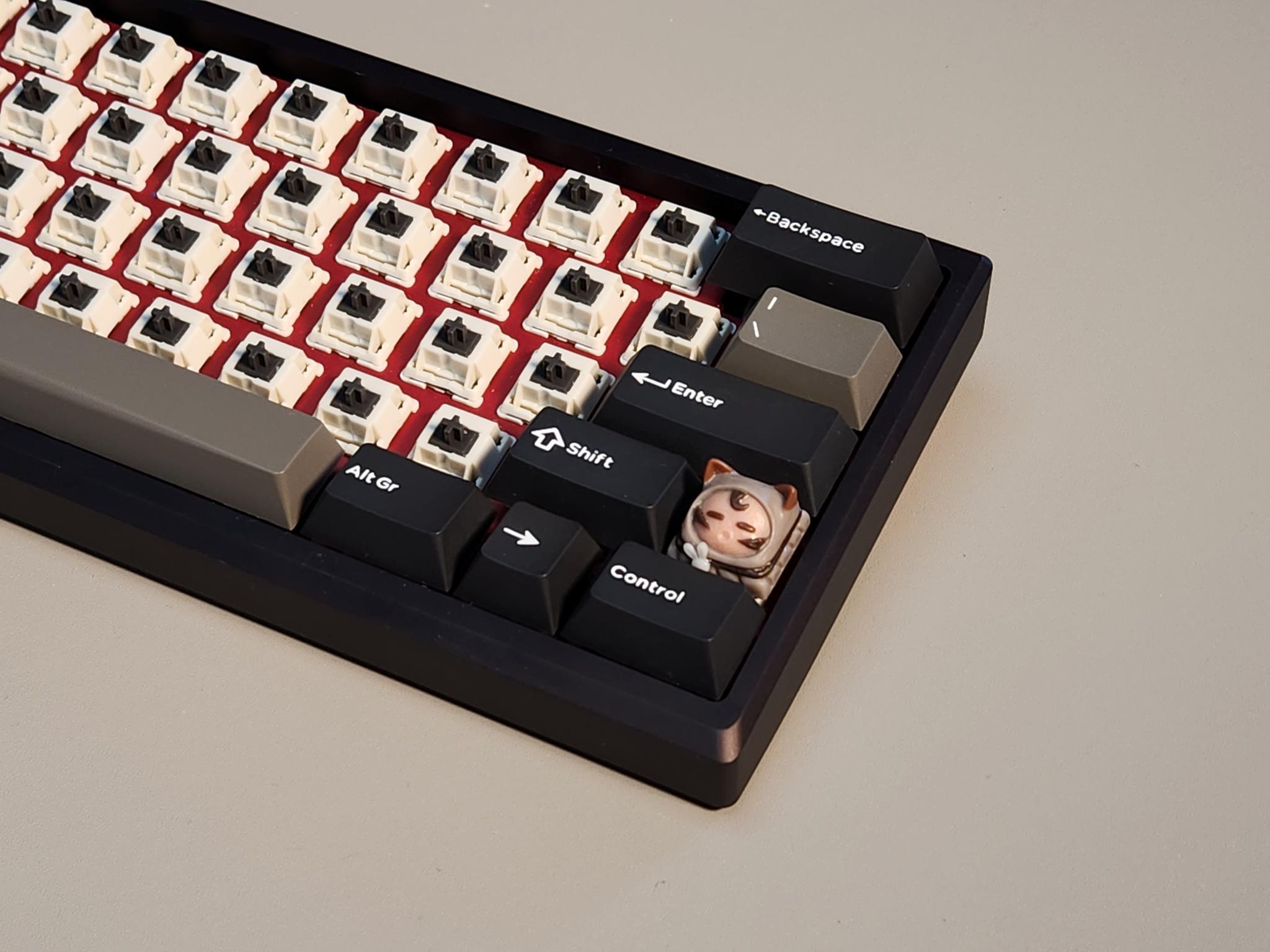

The Horangi60 Keyboard, named after the Korean word for tiger, is a 60% keyboard born from a passion for premium mechanical keyboards. Drawing inspiration from classics like the OTD 356 Mini, SingaKBD Unikorn, and Geonworks F1-8X, the Horangi60 refines beloved features into a unique and carefully crafted design.

Design and Aesthetics

The Horangi60 merges visual and functional elements from renowned keyboards to create a sleek and distinctive design. With a side profile reminiscent of the Mode Sonnet, a top casing inspired by the Geonworks Frog, and a weight design influenced by the GOK 7v, this keyboard is a visual treat. Its clean lines and sandblasted copper weights give it a sophisticated, premium look.

Key Features

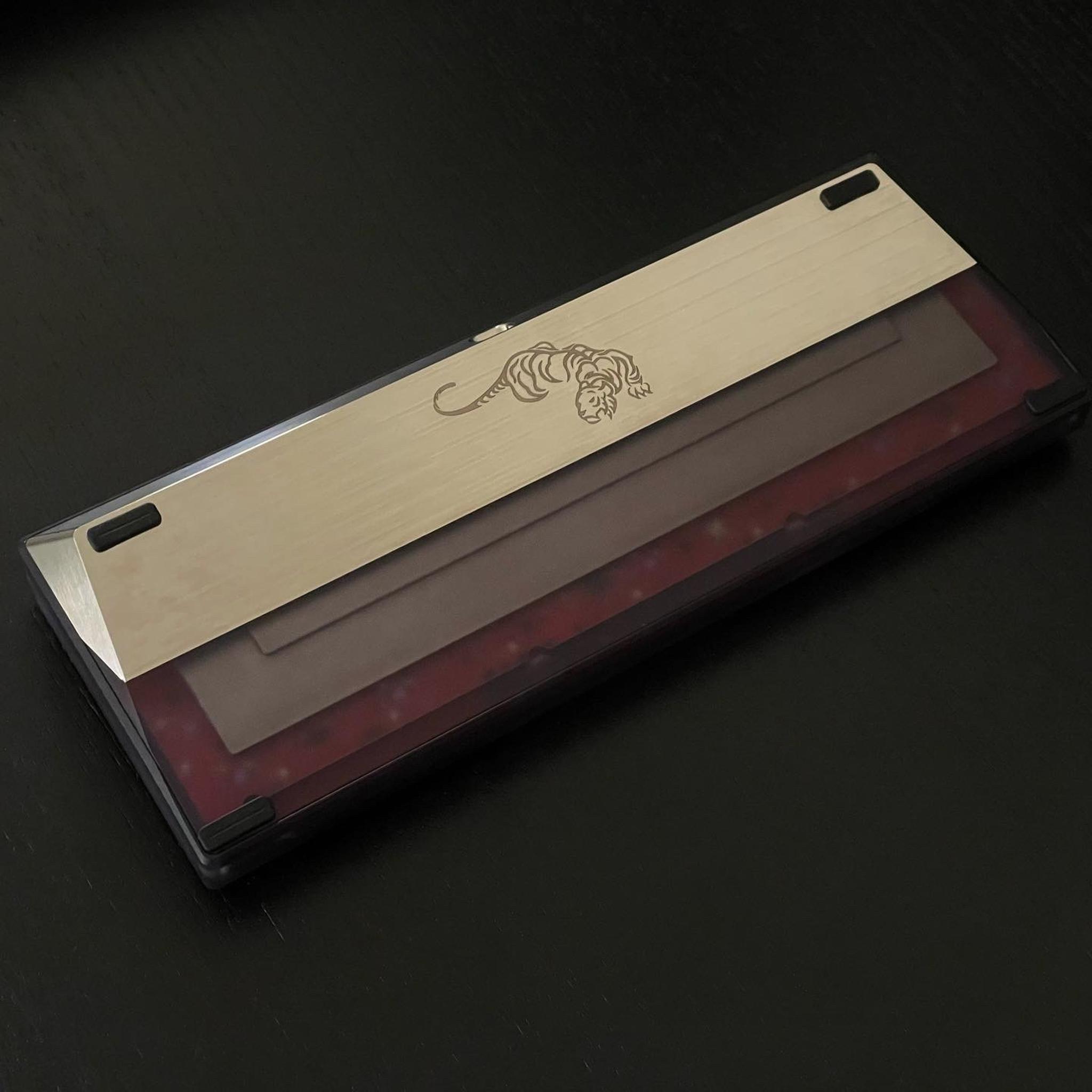

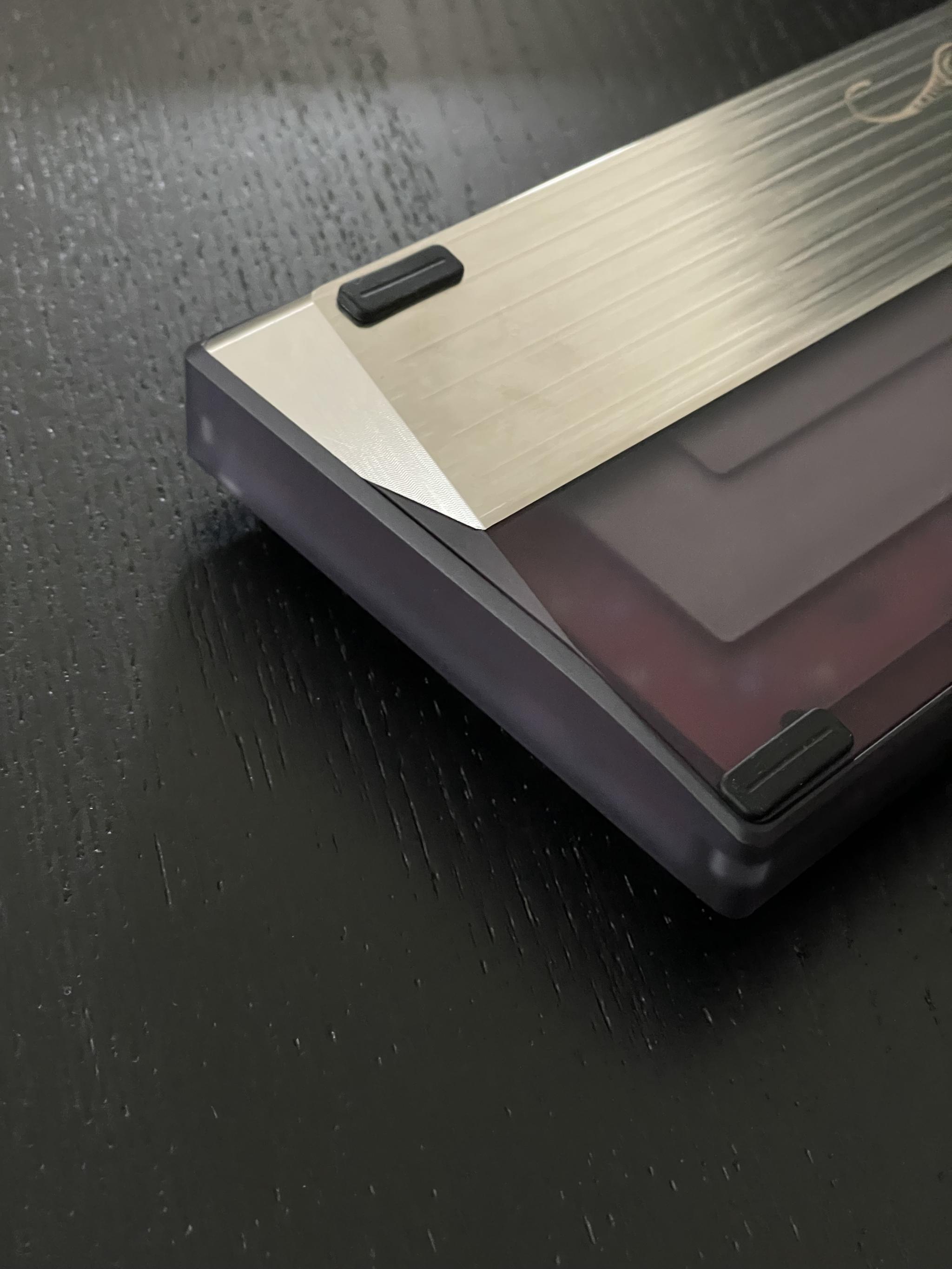

Material: AL6061 aluminum top and bottom housing with sandblasted copper weights
Mounting Style: Viton gummy O-ring mounting and O-ring strips for optimized acoustics and feel
Layouts Supported: WK, WKL, 6U HHKB
Typing Angle: 9 degrees for ergonomic comfort
PCB: CEM3 1.6mm coreless PCB with red silkscreen, Fly daughterboard with Molex
Front Height: 19.5mm for a balanced typing experience
Weight: Approx. 2.2kg built

Prototype Evolution

The Horangi60 underwent multiple prototypes to refine its design and functionality. Adjustments were made to improve internal tolerances, O-ring friction fit, and compression, leading to a final prototype with enhanced acoustic properties and structural integrity. Key innovations include minimal compression for improved sound and the adoption of different materials for weights and plates.

Pricing and Availability

The Horangi60 is estimated to cost around $450 USD with a soft cap of 100 units. The group buy is planned for May, with vendors spanning multiple regions:

OCE: Cafege
KR & NA: KLCQ2
PH: Keyboom
EU, MY & SG: TBA

Conclusion

The Horangi60 is a testament to the passion and dedication of its creator. With its meticulous design, innovative mounting solutions, and premium materials, it promises a top-tier experience for enthusiasts seeking a refined 60% keyboard.

Stay Updated

Join the Horangi60 Discord or complete the Interest Check Form to stay informed about the group buy and future updates.
