Introducing the AM Relic 80, Angry Miao’s first 80% keyboard. Inspired by Daniel Arsham’s “Future Relics,” this keyboard embodies elegance and innovation with a CNC-machined aluminum case, adjustable leaf spring mounting, and tri-mode wireless connectivity. Designed for enthusiasts who value both style and performance, the AM Relic 80 is a tribute to a distant future.

Key Features of the AM Relic 80

Layout: 80% (TKL or WKL variants)
Mounting Style: Three-stage adjustable leaf-spring mount with 12 typing combinations
Materials: CNC-machined anodized aluminum (Basalt Black, Meteor) or e-coated aluminum (Chalk White)
Plate: Default FR4 plate with potential additional options

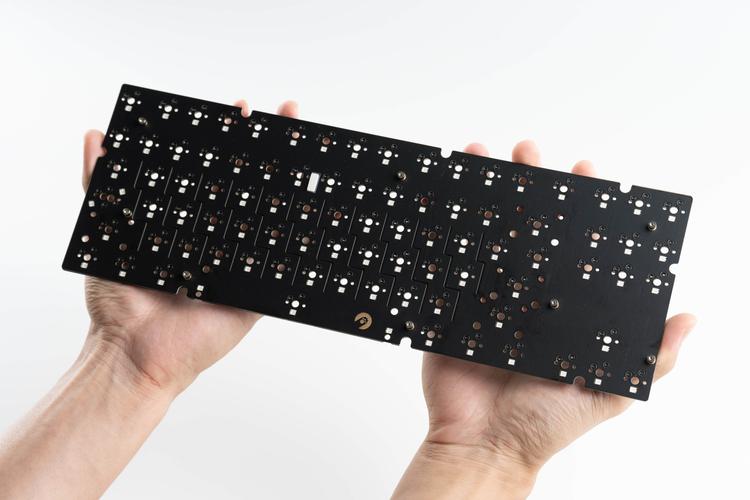

PCB: 1.2mm hot-swap PCB with in-switch RGB and TKL/WKL compatibility
Connectivity: Tri-mode (USB-C, Bluetooth 5.1, 2.4G with Sniper2.4 dongle)
Weight: 2.0kg (Base Kit), 2.25kg (Bundle)

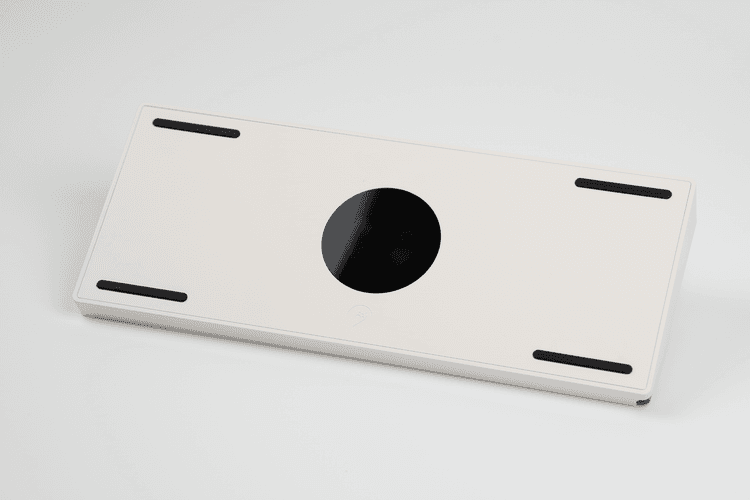

Battery: Dual 5000mAh lithium polymer batteries (wireless charging via Qi protocol)

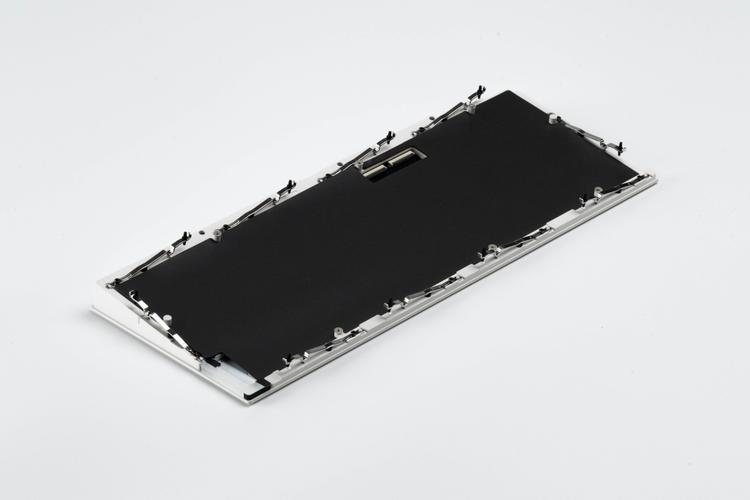

Adjustable Leaf Spring Mounting

The AM Relic 80 introduces a unique adjustable leaf spring mounting system, inspired by coilover suspension in cars. Featuring two materials—phosphorus copper (soft) and stainless steel (firm)—and three hardness levels, this mount allows users to customize the flex and rebound stiffness. Paired with Poron pads, the keyboard can achieve a range of typing feels from ultra-soft to firm and precise.

Design and Build

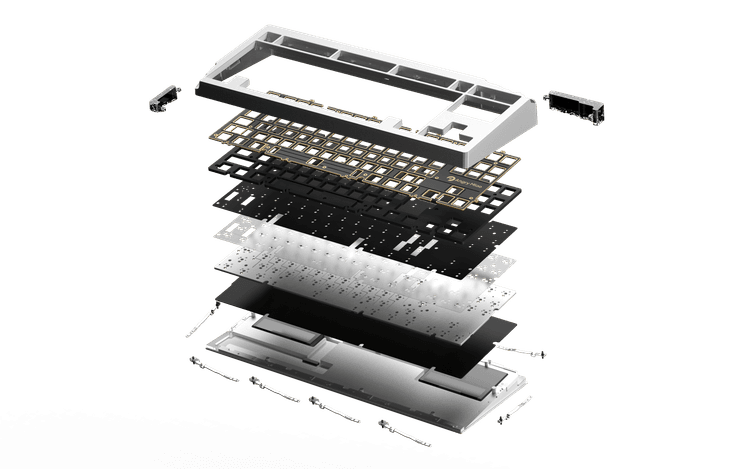

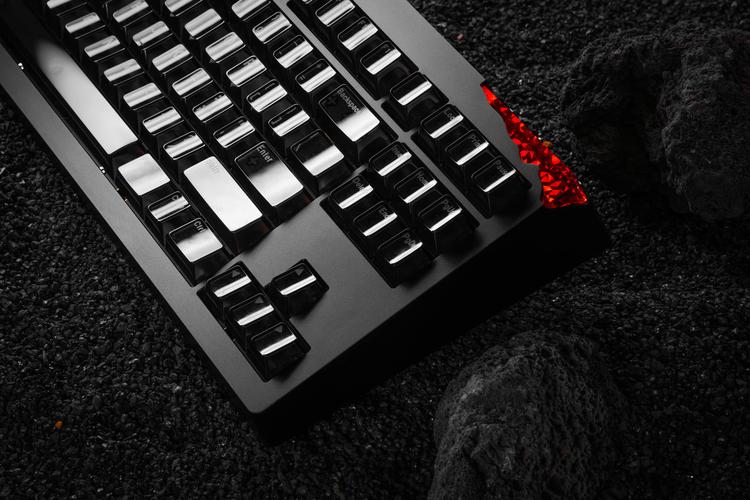

The case of the AM Relic 80 reflects the erosion-inspired aesthetic of Daniel Arsham’s Brillo Box, crafted from CNC-machined aluminum with intricate diamond-pattern RGB lighting in its corners. With an 8° typing angle, 19mm front height, and a meticulously crafted 8-layer internal structure, this keyboard prioritizes comfort, sound quality, and a premium user experience.

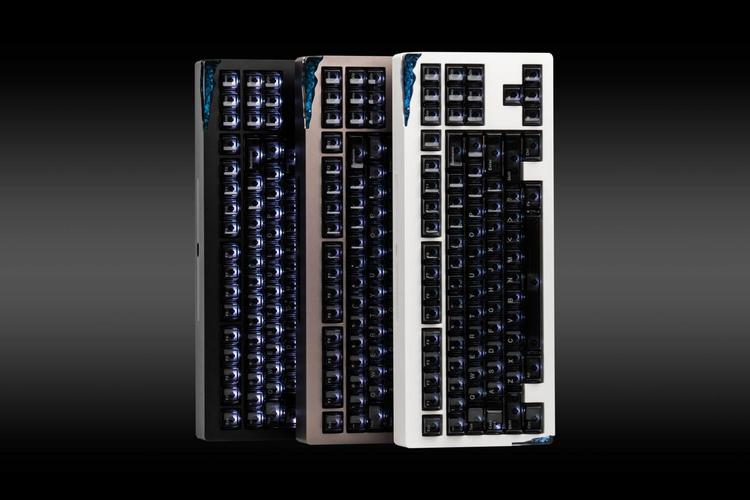

Color Options

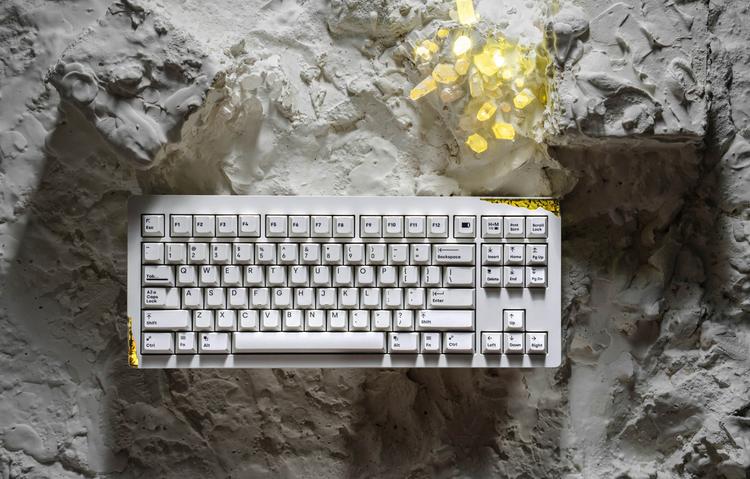

Chalk White: E-coated with a matte, marble-like texture

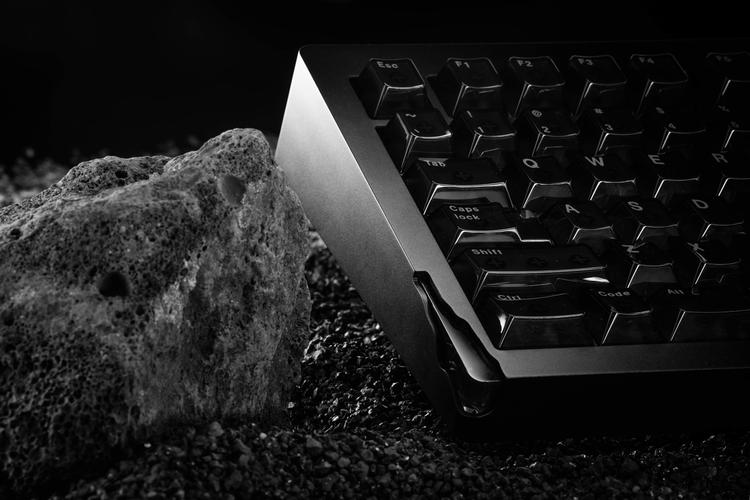

Basalt Black: Anodized finish with integrated RGB lighting

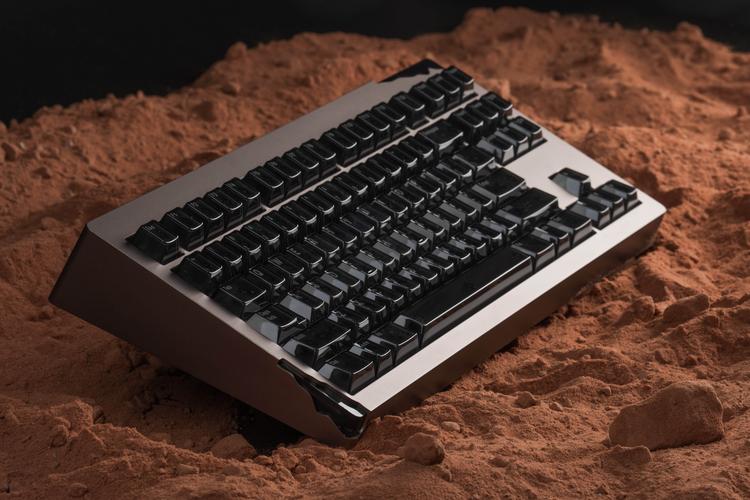

Meteor: Anodized light brown, inspired by meteorites

Technical Specifications

RGB Lighting: In-switch and case corner lighting, fully customizable
Battery Life: 10,000mAh total, supporting Qi wireless charging
Flexibility: Compatible with TKL and WKL layouts
Software: Key remapping and LED customization through Angry Miao’s DIY site

Launch Details

The AM Relic 80 is scheduled to launch in 2024 with pricing and availability to be announced. Limited to an initial run of 50–70 units, this keyboard will ship from Australia following rigorous quality control checks. Stay updated on its progress via Angry Miao’s website or Discord.

Experience the Future with AM Relic 80

Blending timeless aesthetics with cutting-edge technology, the AM Relic 80 is more than a keyboard—it’s a statement piece. With its unique design and innovative features, this keyboard is perfect for enthusiasts looking to elevate their typing experience.

Join the IC today and stay tuned for the AM Relic 80 launch!
