Vertex V one Switch

The Vertex V One Switch, designed by Vertex and produced by JWK, marks Vertex's inaugural entry into the switch market. This MX-stem linear switch is available in both factory lubed and non-lubed versions, with each switch competitively priced at $0.3. The switch features a unique design aimed at exceptional performance and reliability, employing high-quality materials like Nylon PA66 for housing and POM for the stem. The first batch was released for sale on June 13 and June 17, 2023, through ClickClack.io, the official vendor.

Order window is closed

12 Jun 2023

Order window

Order window closed

30 Sep 2025 → 16 Jun 2023

Project Gallery

Vendors & Regions

5
Vendors

ClickClack

Region TBA

Eloquent Clicks

Region TBA

UniKeyboards

Region TBA

IlumKB

Region TBA

DIYKey

Region TBA

Pricing & Kits

Estimated Price Range

TBA

Kits Offered

Pack of 70 pcsPack of 90 pcsPack of 110 pcs

Project Specs

13
Specs Listed
Name
Vertex V One Switch
Release year
2023
Switch type
MX-stem 5-pin Linear switch
Actuation force
35gf(min)
Bottom out force
62+10gf
Total travel
4.0+0.3mm
Pre travel
35gf(min)
Pins
5
Top Housing Material
Nylon PA66
Bottom Housing Material
Nylon PA66

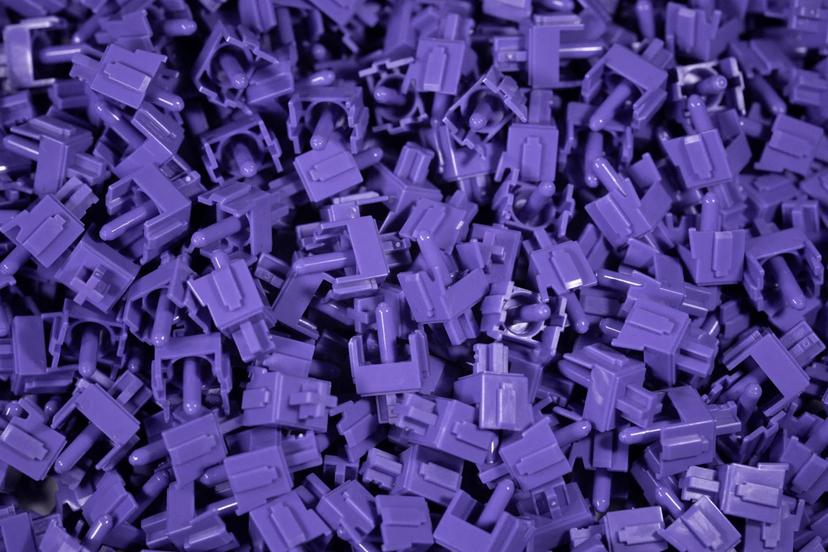

Stem Material
POM

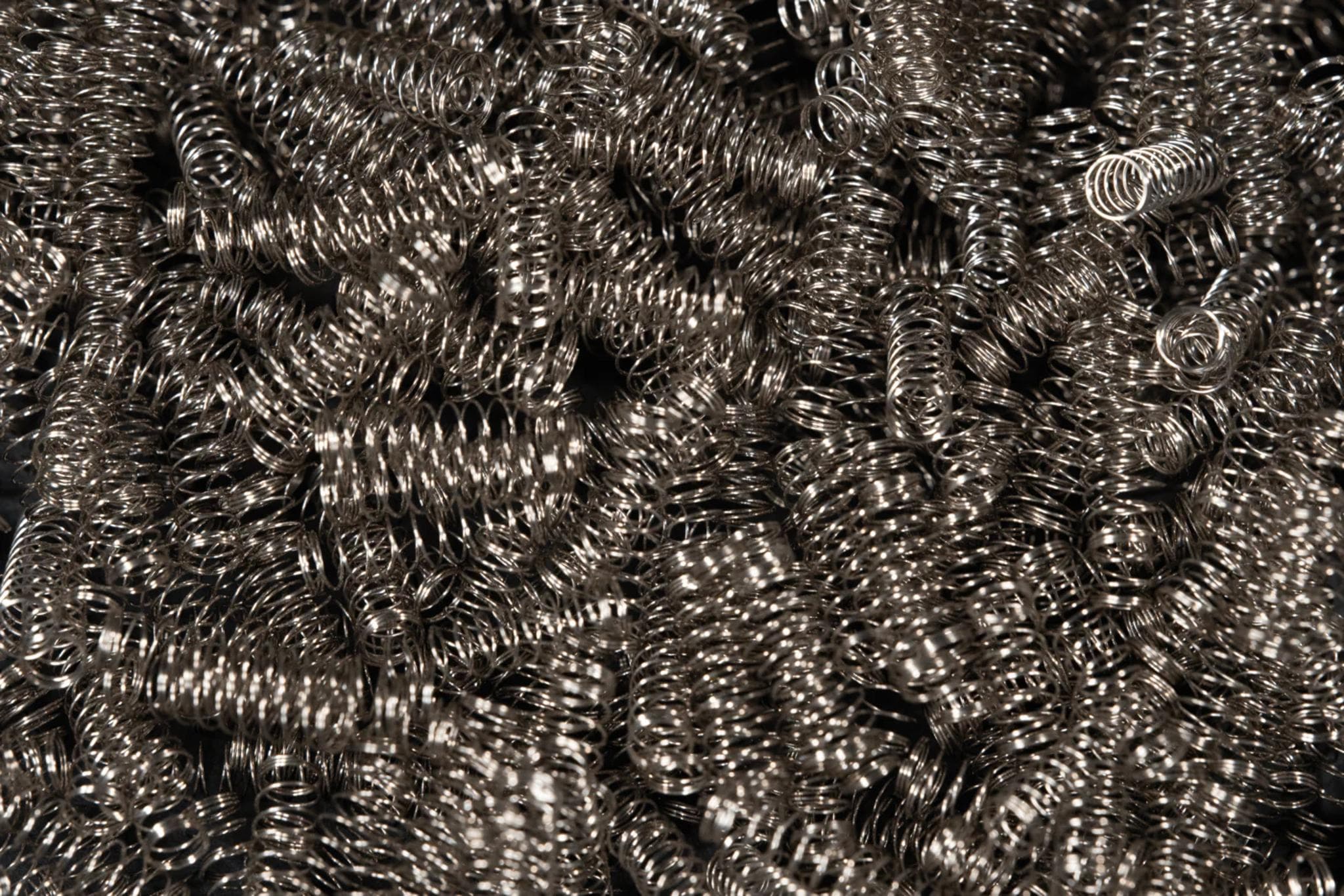

Spring type
15mm non-gold plated stainless steel
Sound profile
Cleaner and concentrated
